SD整硬螺旋槽鉆頭--HE高性能型

O7SD-HE

SD 內冷整體硬質合金螺旋槽鉆頭7×D 高性能型

刀具特點說明:

1、刀具尺寸按本公司標準制造，接受非標定制。

2、刃徑公差為m7，柄部公差為h6。

3、刀尖頂角、刀尖形式、排屑槽形式、涂層等要素針對各系列特點進行分別設計，確保各系列達到最優的加工效果。

產品特色
產品尺寸
加工視頻

HE/SE 系列高性能整硬鉆頭

適合高速加工

產品特點:

□ 優異的鉆尖形式

容屑槽是圓弧過度，增加了鉆尖的強度，后角是鏟磨成圓弧，并配合良好的鈍化工藝。

□ 采用銑刀柄式設計

采用銑刀相同的柄部形式，實現高精度鉆孔。

加工案例:

□ 切削條件

被加工材料: 合金鋼SCM440	鉆頭直徑: 8.0mm
切削速度: 100m / min	進給量: 1200mm / mi
冷卻方式: Emulsion	涂層: HE 涂層

□ 加工壽命比較

被切削材料:

系列

被切削材料

結構鋼

碳素鋼

合金鋼

預硬化鋼

調質鋼、模具鋼、高硬度鋼

不銹鋼

鈦合金、
耐熱合金

鑄鐵

鋁合金

銅合金

樹脂

HRC30-45

HRC45-55

HRC55-60

>HRC60

◎

○

◎

○

(◎ 最適合 ○ 適合)

可選類型：

3XD / 3XD 內冷 / 5XD / 5XD 內冷 / 7XD / 7XD 內冷

尺寸范圍：

D=2.00~20.00mm

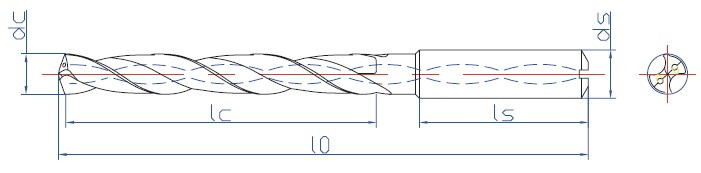

高性能型訂貨號	刃徑	槽長	柄徑	柄長	總長
HE系列（通用有涂層）	dc	lc	ds	ls	lo
O7SD0200HE	2	20	3	28	51
O7SD0210HE	2.1	20	3	28	51
O7SD0220HE	2.2	20	3	28	51
O7SD0230HE	2.3	20	3	28	51
O7SD0240HE	2.4	20	3	28	51
O7SD0250HE	2.5	20	3	28	51
O7SD0260HE	2.6	26	3	28	57
O7SD0270HE	2.7	26	3	28	57
O7SD0280HE	2.8	26	3	28	57
O7SD0300HE	3	26	3	28	57
O7SD0310HE	3.1	34	4	28	67
O7SD0320HE	3.2	34	4	28	67
O7SD0330HE	3.3	34	4	28	67
O7SD0340HE	3.4	34	4	28	67
O7SD0350HE	3.5	34	4	28	67
O7SD0360HE	3.6	34	4	28	67
O7SD0370HE	3.7	34	4	28	67
O7SD0380HE	3.8	34	4	28	67
O7SD0390HE	3.9	34	4	28	67
O7SD0400HE	4	34	4	28	67
O7SD0410HE	4.1	47	6	36	88
O7SD0420HE	4.2	47	6	36	88
O7SD0430HE	4.3	47	6	36	88
O7SD0440HE	4.4	47	6	36	88
O7SD0450HE	4.5	47	6	36	88
O7SD0460HE	4.6	47	6	36	88
O7SD0470HE	4.7	47	6	36	88
O7SD0480HE	4.8	47	6	36	88
O7SD0490HE	4.9	47	6	36	88
O7SD0500HE	5	47	6	36	88
O7SD0510HE	5.1	51	6	36	92
O7SD0520HE	5.2	51	6	36	92
O7SD0530HE	5.3	51	6	36	92
O7SD0540HE	5.4	51	6	36	92
O7SD0550HE	5.5	51	6	36	92
O7SD0560HE	5.6	51	6	36	92
O7SD0570HE	5.7	51	6	36	92
O7SD0580HE	5.8	51	6	36	92
O7SD0590HE	5.9	51	6	36	92
O7SD0600HE	6	51	6	36	92
O7SD0610HE	6.1	64	8	36	105
O7SD0620HE	6.2	64	8	36	105
O7SD0630HE	6.3	64	8	36	105
O7SD0640HE	6.4	64	8	36	105
O7SD0650HE	6.5	64	8	36	105
O7SD0660HE	6.6	64	8	36	105
O7SD0670HE	6.7	64	8	36	105
O7SD0680HE	6.8	64	8	36	105
O7SD0690HE	6.9	64	8	36	105
O7SD0700HE	7	64	8	36	105
O7SD0710HE	7.1	68	8	36	109
O7SD0720HE	7.2	68	8	36	109
O7SD0730HE	7.3	68	8	36	109
O7SD0740HE	7.4	68	8	36	109
O7SD0750HE	7.5	68	8	36	109
O7SD0760HE	7.6	68	8	36	109
O7SD0770HE	7.7	68	8	36	109
O7SD0780HE	7.8	68	8	36	109
O7SD0790HE	7.9	68	8	36	109
O7SD0800HE	8	68	8	36	109
O7SD0810HE	8.1	81	10	40	126
O7SD0820HE	8.2	81	10	40	126
O7SD0830HE	8.3	81	10	40	126
O7SD0840HE	8.4	81	10	40	126
O7SD0850HE	8.5	81	10	40	126
O7SD0860HE	8.6	81	10	40	126
O7SD0870HE	8.7	81	10	40	126
O7SD0880HE	8.8	81	10	40	126
O7SD0890HE	8.9	81	10	40	126
O7SD0900HE	9	81	10	40	126
O7SD0910HE	9.1	85	10	40	130
O7SD0920HE	9.2	85	10	40	130
O7SD0930HE	9.3	85	10	40	130
O7SD0940HE	9.4	85	10	40	130
O7SD0950HE	9.5	85	10	40	130
O7SD0960HE	9.6	85	10	40	130
O7SD0970HE	9.7	85	10	40	130
O7SD0980HE	9.8	85	10	40	130
O7SD0990HE	9.9	85	10	40	130
O7SD1000HE	10	85	10	40	130
O7SD1010HE	10.1	98	12	45	148
O7SD1020HE	10.2	98	12	45	148
O7SD1030HE	10.3	98	12	45	148
O7SD1040HE	10.4	98	12	45	148
O7SD1050HE	10.5	98	12	45	148
O7SD1060HE	10.6	98	12	45	148
O7SD1070HE	10.7	98	12	45	148
O7SD1080HE	10.8	98	12	45	148
O7SD1090HE	10.9	98	12	45	148
O7SD1100HE	11	98	12	45	148
O7SD1110HE	11.1	102	12	45	152
O7SD1120HE	11.2	102	12	45	152
O7SD1130HE	11.3	102	12	45	152
O7SD1140HE	11.4	102	12	45	152
O7SD1150HE	11.5	102	12	45	152
O7SD1160HE	11.6	102	12	45	152
O7SD1170HE	11.7	102	12	45	152
O7SD1180HE	11.8	102	12	45	152
O7SD1190HE	11.9	102	12	45	152
O7SD1200HE	12	102	12	45	152
O7SD1210HE	12.1	115	14	45	165
O7SD1220HE	12.2	115	14	45	165
O7SD1230HE	12.3	115	14	45	165
O7SD1240HE	12.4	115	14	45	165
O7SD1250HE	12.5	115	14	45	165
O7SD1260HE	12.6	115	14	45	165
O7SD1270HE	12.7	115	14	45	165
O7SD1280HE	12.8	115	14	45	165
O7SD1290HE	12.9	115	14	45	165
O7SD1300HE	13	115	14	45	165
O7SD1310HE	13.1	119	14	45	169
O7SD1320HE	13.2	119	14	45	169
O7SD1330HE	13.3	119	14	45	169
O7SD1340HE	13.4	119	14	45	169
O7SD1350HE	13.5	119	14	45	169
O7SD1360HE	13.6	119	14	45	169
O7SD1370HE	13.7	119	14	45	169
O7SD1380HE	13.8	119	14	45	169
O7SD1390HE	13.9	119	14	45	169
O7SD1400HE	14	119	14	45	169
O7SD1410HE	14.1	132	16	48	185
O7SD1420HE	14.2	132	16	48	185
O7SD1430HE	14.3	132	16	48	185
O7SD1440HE	14.4	132	16	48	185
O7SD1450HE	14.5	132	16	48	185
O7SD1460HE	14.6	132	16	48	185
O7SD1470HE	14.7	132	16	48	185
O7SD1480HE	14.8	132	16	48	185
O7SD1490HE	14.9	132	16	48	185
O7SD1500HE	15	132	16	48	185
O7SD1510HE	15.1	136	16	48	189
O7SD1520HE	15.2	136	16	48	189
O7SD1530HE	15.3	136	16	48	189
O7SD1540HE	15.4	136	16	48	189
O7SD1550HE	15.5	136	16	48	189
O7SD1560HE	15.6	136	16	48	189
O7SD1570HE	15.7	136	16	48	189
O7SD1580HE	15.8	136	16	48	189
O7SD1590HE	15.9	136	16	48	189
O7SD1600HE	16	136	16	48	189
O7SD1610HE	16.1	149	18	48	202
O7SD1620HE	16.2	149	18	48	202
O7SD1630HE	16.3	149	18	48	202
O7SD1640HE	16.4	149	18	48	202
O7SD1650HE	16.5	149	18	48	202
O7SD1660HE	16.6	149	18	48	202
O7SD1670HE	16.7	149	18	48	202
O7SD1680HE	16.8	149	18	48	202
O7SD1690HE	16.9	149	18	48	202
O7SD1700HE	17	149	18	48	202
O7SD1710HE	17.1	153	18	48	206
O7SD1720HE	17.2	153	18	48	206
O7SD1730HE	17.3	153	18	48	206
O7SD1740HE	17.4	153	18	48	206
O7SD1750HE	17.5	153	18	48	206
O7SD1760HE	17.6	153	18	48	206
O7SD1770HE	17.7	153	18	48	206
O7SD1780HE	17.8	153	18	48	206
O7SD1790HE	17.9	153	18	48	206
O7SD1800HE	18	153	18	48	206
O7SD1850HE	18.5	166	20	50	221
O7SD1860HE	18.6	166	20	50	221
O7SD1870HE	18.7	166	20	50	221
O7SD1880HE	18.8	166	20	50	221
O7SD1890HE	18.9	166	20	50	221
O7SD1900HE	19	166	20	50	221
O7SD1910HE	19.1	170	20	50	225
O7SD1920HE	19.2	170	20	50	225
O7SD1930HE	19.3	170	20	50	225
O7SD1940HE	19.4	170	20	50	225
O7SD1950HE	19.5	170	20	50	225
O7SD1960HE	19.6	170	20	50	225
O7SD1970HE	19.7	170	20	50	225
O7SD1980HE	19.8	170	20	50	225
O7SD1990HE	19.9	170	20	50	225
O7SD2000HE	20	170	20	50	225
